This urinary “Foley” catheters are made from natural latex compounded in a formulation that has been proved biocompatible for human body. This medical device is sterilized by E.O (Ethylene Oxide) gas.
It is applicable to the patients with impaired bladder function, incontinence, hemostasis in urinary surgery, to drain the bladder when it fails to empty. It’s application to each patient shall strictly follow doctors’ or nursing persons’ instruction or discretion.vv

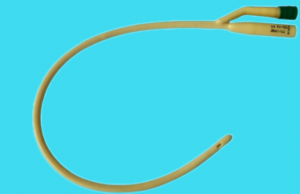

2-Way Latex Foley Catherter Component: 1. Rubber Valve – 2. Rubber Sleeve – 3. Funel – 4. Shaft – 5. Balloon – 6. Eye
Specifications:
| Item Name | OD ±0.66mm |
ID ±0.5mm |
A ±0.5mm |
B ±0.5mm |
C ±3.0mm |
D ±10mm |
L ±20mm |
Balloon Capacity |
Flow speed ml/p | Remark | |
| Size | Color | ||||||||||
| F2W0305-06 | 2.00 | 0.70 | 2.20 | 1.50 | 12.00 | 50.00 | 300.00 | 3-5ml | ≥35 | 6Fr | Green |
| F2W0305-08 | 2.70 | 0.90 | 2.40 | 1.70 | 12.00 | 50.00 | 300.00 | 3-5ml | ≥35 | 8Fr | Black |
| F2W0305-10 | 3.30 | 1.10 | 2.40 | 1.70 | 12.00 | 50.00 | 300.00 | 3-5ml | ≥65 | 10Fr | Grey |
| F2W0515-12 | 4.00 | 1.70 | 4.70 | 2.40 | 15.00 | 50.00 | 400.00 | 5-15-20ml | ≥100 | 12Fr | White |
| F2W0515-14 | 4.70 | 2.00 | 4.70 | 2.40 | 15.00 | 50.00 | 400.00 | 5-15-20ml | ≥250 | 14Fr | Green |
| F2W0515-16 | 5.30 | 2.50 | 6.00 | 3.00 | 15.00 | 50.00 | 400.00 | 5-15-20ml | ≥350 | 16Fr | Orange |
| F2W0515-18 | 6.00 | 2.90 | 6.00 | 3.00 | 15.00 | 50.00 | 400.00 | 5-15-20ml | ≥480 | 18Fr | Red |
| F2W0515-20 | 6.70 | 3.50 | 6.70 | 3.70 | 15.00 | 50.00 | 400.00 | 5-15-20ml | ≥600 | 20Fr | Yellow |
| F2W0515-22 | 7.30 | 3.70 | 6.70 | 3.70 | 15.00 | 50.00 | 400.00 | 5-15-20ml | ≥800 | 22Fr | Violet |
| F2W0515-24 | 8.00 | 4.60 | 6.70 | 4.20 | 15.00 | 50.00 | 400.00 | 5-15-20ml | ≥1050 | 24Fr | Light Blue |
| F2W0515-26 | 8.70 | 5.00 | 6.70 | 4.20 | 15.00 | 50.00 | 400.00 | 5-15-20ml | ≥1250 | 26Fr | Light Pink |
| F2W0515-28 | 9.30 | 5.30 | 8.20 | 5.40 | 15.00 | 50.00 | 400.00 | 5-15-20ml | ≥1350 | 28Fr | Black |
| F2W0515-30 | 10.00 | 5.80 | 8.20 | 5.40 | 15.00 | 50.00 | 400.00 | 5-15-20ml | ≥1450 | 30Fr | Grey |
| F2W3050-12 | 4.00 | 1.70 | 4.70 | 2.40 | 23.00 | 50.00 | 400.00 | 20-30-50ml | ≥100 | 12Fr | White |
| F2W3050-14 | 4.70 | 2.00 | 4.70 | 2.40 | 23.00 | 50.00 | 400.00 | 20-30-50ml | ≥250 | 14Fr | Green |
| F2W3050-16 | 5.30 | 2.50 | 6.00 | 3.00 | 23.00 | 50.00 | 400.00 | 20-30-50ml | ≥350 | 16Fr | Orange |
| F2W3050-18 | 6.00 | 2.90 | 6.00 | 3.00 | 23.00 | 50.00 | 400.00 | 20-30-50ml | ≥480 | 18Fr | Red |
| F2W3050-20 | 6.70 | 3.50 | 6.70 | 3.70 | 23.00 | 50.00 | 400.00 | 20-30-50ml | ≥600 | 20Fr | Yellow |
| F2W3050-22 | 7.30 | 3.70 | 6.70 | 3.70 | 23.00 | 50.00 | 400.00 | 20-30-50ml | ≥800 | 22Fr | Violet |
| F2W3050-24 | 8.00 | 4.60 | 6.70 | 4.20 | 23.00 | 50.00 | 400.00 | 20-30-50ml | ≥1050 | 24Fr | Light Blue |
| F2W3050-26 | 8.70 | 5.00 | 6.70 | 4.20 | 23.00 | 50.00 | 400.00 | 20-30-50ml | ≥1250 | 26Fr | Light Pink |
| F2W3050-28 | 9.30 | 5.30 | 8.20 | 5.40 | 23.00 | 50.00 | 400.00 | 20-30-50ml | ≥1350 | 28Fr | Black |
| F2W3050-30 | 10.00 | 5.80 | 8.20 | 5.40 | 23.00 | 50.00 | 400.00 | 20-30-50ml | ≥1450 | 30Fr | Grey |
Packaging Information (Click here for more details of each package)
Products are individually packaged in sterile bags, ensuring sterility.
* 10 pcs/ inner box, 50 inner box/carton
* 10 pcs/ inner box, 30 inner box/carton.
a) Paper pouch: 60mm x 500mm 60g medical paper 52um clear film
b) Inner box: 505L x 75W x 46H
c) Carton box: 480L x 395W x 530H
d) PE poly bag: T0.045 x W40 x L500-P0A0
Contact for further details: [email protected]
# Specification sheet for 2-Way Latex Foley Catherter (click here)
